Mapping The History Of The ATL


Candler Field Post Card 2

Over the years in this blog I’ve obliquely referred to where I work as “the world’s busiest airport”. Most of my friends know that I’m referring to Hartsfield-Jackson Atlanta International Airport (H-JAIA) in Atlanta. The city of Atlanta is often referred to as “the ATL” but the term ‘ATL’ is actually the International Air Transport Association code that identifies H-JAIA in airline ticketing, reservation and baggage handling systems. When your flight destination is Atlanta the ticketing agent slaps a big ATL tag on your luggage to let the baggage handlers know where it needs to go. The younger generation in Atlanta has latched onto the term “the ATL” to describe their city, and I think it’s an interesting way of acknowledging the part the airport has played in the growth of the Atlanta region over the past 30 years.

A lot of folks get confused when they think of H-JAIA. Some think it’s the world’s largest airport. It’s not – far from it. Lots of other airports occupy more ground. H-JAIA’s claim to fame is that for the past decade or so it has been the world’s busiest civilian passenger airport. As of this date H-JAIA is serving over 250,000 traveling passengers per dayThat’s more passengers per day than many airports handle in a week, a month, or even a year!

But how did H-JAIA get to where it is today? You don’t just build an airport and a quarter million passengers magically appear. The story of Atlanta’s airport is the story of concerted efforts on the part of a succession of mayors, starting with William B. Hartsfield and extending right up to today’s mayor, Kasim Reed, to build, promote and maintain the city’s airport as an engine of economic growth for the Atlanta region and the entire southeastern United States. But growth means construction and expansion, and that’s why we are here today.


One of my jobs at H-JAIA is managing the airport’s aerial imagery program. In fact, before my team came on-board in 2007 there was no formal aerial imagery program. Aerial coverage of the airport was occasionally flow by government agencies like the US Geological Survey or the Soil Conservation Service, and in later years by contractors working large projects at the airport, but there was no Atlanta airport-managed and funded effort to acquire standard aerial imagery for use in the airport’s CAD and GIS systems. The engineering and design staff at the airport just relied on hand-me-downs and took whatever imagery they could get.

Once we got the aerial imagery program in place (we now have the airport flown once a year for orthorectified coverage at high and medium resolutions) staff at the airport started asking if it would be possible to ‘register’ successive years of imagery in an effort to track the changes that have taken place at H-JAIA. I was intrigued by the request. We had a small but growing catalog of aerial images and I thought it would be fun to take on the challenge.

A persistent rumor among many of the long-time employees in the airport’s planning & development division was that the airport got its start years ago as a racetrack. Now, nobody could define what ‘years ago’ meant. Some said maybe 50 years ago, others said 75. They just knew it was a long time ago, before they started work at the airport. In addition nobody could tell me precisely where this racetrack had been located. They only knew it had to be somewhere on the north side of the airport property since the airport’s growth over the decades was a steady march from north to south. Sadly, decades of airport expansion had obliterated all traces of it.

Some folks offered up old postcards and oblique aerial photos that depicted the race track. Clearly it had once existed, but where?

Atlanta Speedway postcard

An early postcard showing the speedway. The problem is, the artist got a lot wrong. The stands and supporting buildings were never as grand or extensive as shown in this drawing, and the layout is actually the reverse of what was actually built. My guess is this is a copy of a conceptual drawing or plan that got turned into a postcard

Atlanta Speedway oblique_orig

Oblique aerial photograph of the Atlanta Speedway race track taken around 1919 and looking to the northeast. OK, there clearly had been a racetrack, but where was it in relation to the modern airport?

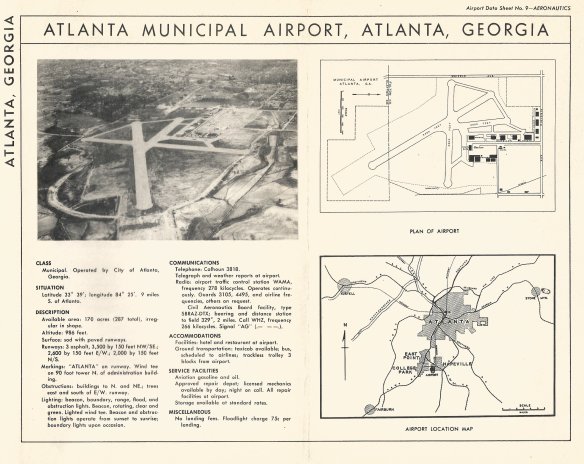

Even the Civil Aeronautics Authority (forerunner to the FAA) got into the act and published an early airport data sheet that clearly shows the remnants of the racetrack with the new post-war pattern of runways and taxiways overlaid on it

Atlanta Airport Data Sheet circa 1940

1946 Atlanta Municipal Airport data sheet

By this time I was getting a good bit of help. Several co-workers – Bill Beckwith, Dottie Gandee and Talley Jones – all aviation history buffs, started digging through their resources and finding interesting tidbits. One day Talley came to me with an aerial photograph of the airport taken in 1940 by the US Soil Conservation Service. It was an ‘ah-ha!’ moment. There in the upper center of the photo was the clear outline of remnants of the racetrack along with the early runways and taxiways. But just as important, the photo also showed street intersections in the surrounding communities of College Park and Hapeville. These street intersections would prove critical to ‘registering’ or georeferencing this aerial to more recent airport images.

Candler Field 1940

Atlanta’s airport, 1940. At the time it was known as Candler Field. The image is rotated just a bit as a result of the georeferencing process and is oriented to true north

Soon more aerial photos came my way. In particular the 1949 aerial shows the growth of the airport spurred by the rapid expansion of civil aviation after WWII and Atlanta’s early moves to establish itself as the major hub airport in the southeast.

Atlanta Municipal Airport 1949

Atlanta Municipal Airport, 1949

I found myself with great aerial images separated by a wide gulf of time and change. I had our modern, highly accurate orthorectified aerial images tightly tied to the Earth’s surface and old, historically significant aerials with no ties to anything. It was time to get to work and georeference the old to the new.

The process of georeferencing is easy to understand. You have two images, one of which is already georeferenced, or ‘tied’, to the Earth’s surface. Using common tie points – things like road intersections or key natural features seen in both images – you use the controlled (georeferenced) image to bring geographic values (x & y) onto the same points in the uncontrolled image. When the process is complete the uncontrolled image is now georeferenced and will automatically line up with any other georeferenced image or map.

An accurate georeference process requires the use of several common tie points evenly distributed around the images. For example, if all of your common points are clustered in the upper left of your images then the accuracy of the georeferencing process will rapidly fall off as you move towards the lower right of the uncontrolled image. This is precisely the issue I ran up against when trying to georeference the older 1940 and 1949 aerials to our modern orthorectified images. As the airport grew to the south it wiped away all traces of the old road patterns seen in the southern portions of the old photos. While there were road intersections in the upper parts of the old aerials that were still visible in the current images that made good tie points, there were no common points available as we moved south, away from the Hapeville and College Park areas. Atlanta’s airport had literally bulldozed away entire communities, farms and roads as it expanded southward. Where there were road intersections, houses, churches, farm fields and fencelines in the 1940 and 1949 aerials there was nothing but runways and taxiways in the modern images. I was stuck.

1940 vs 2013 comparison

Here was the problem. As part of airport expansion projects over the decades Atlanta’s airport bulldozed away most of the common reference points like road intersections that would have allowed accurately georeferencing the historic images to modern imagery. (Click to enlarge)

Then one day I was looking through the US Geological Survey’s (USGS) on-line historical topographic map library and found the 1955 1:24,000 scale topographic quad sheet for East Point, GA. These historical topo sheets are high quality scans of the original paper maps and have been georeferenced. As I looked at the 1955 quad sheet and the 1940 & 1949 aerials I realized I had found my Rosetta Stone. The 1955 topographic map and the aerials all shared evenly distributed tie points and I could use the map to accurately georeference the images. While this 1:24,000 scale topographic map is not a highly accurate control source, it was more than good enough for this job.

Atlanta Airport topo 1955

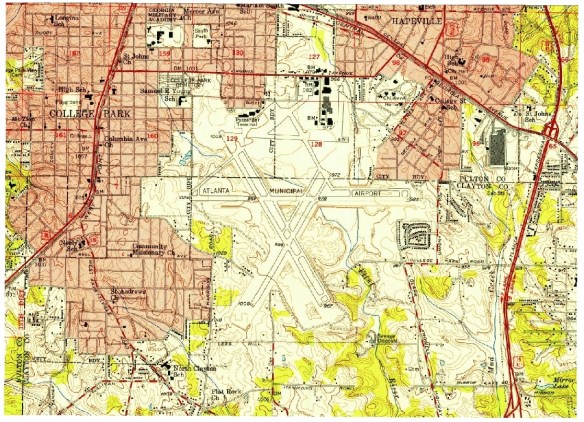

The Rosetta Stone! Portion of the 1955 edition of the USGS East Point, GA topographic quad sheet. Using this map I was able to accurately georeference a series of aerial images extending from 1940 to 1972

Here’s a graphic that shows how the georeferencing process works. The process is handled by our ArcGIS desktop software which offers powerful tools to georeference a wide variety of maps, images, charts, CAD drawings or any other data that can be tied to a ground location.

Georeferencing Example

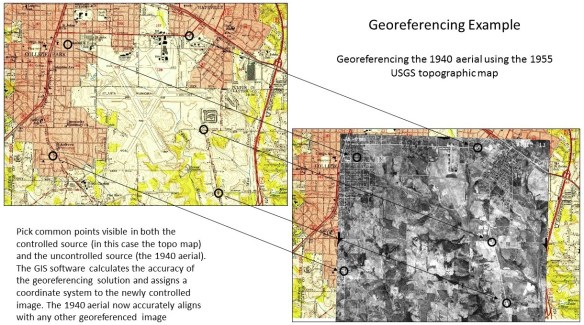

How georeferencing works. The concept is as old as map making itself, but modern GIS software makes it fast, easy and accurate


So let’s get back to the original question – where was this racetrack? Well, now that we had the 1940 aerial georeferenced it was a simple matter of tracing the racetrack from the aerial and creating a new GIS data layer that could be used in a wide variety of maps. Mystery solved!

Atlanta Speedway 1940

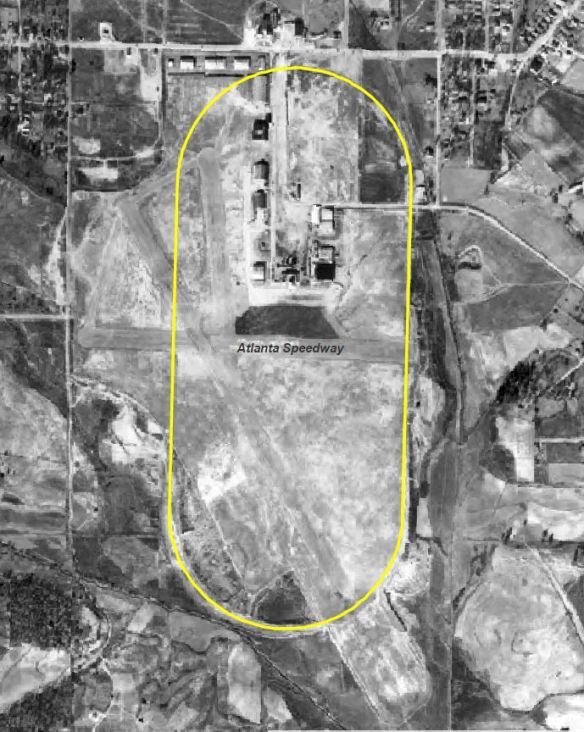

Alignment of the Atlanta Speedway, 1940. Remnants of the speedway are still visible in the image, permitting accurate tracing of the alignment

Atlanta Speedway 2014

Alignment of the Atlanta Speedway against the 2014 aerial

But what to do with all this great information? It’s a shame to keep all this airport history locked up on a hard drive. Just a few years ago if someone wanted to view our historical imagery we were limited to printing paper maps or relying on emerging and not-yet-mature web mapping technologies to put this information out on the Internet. But times have changed, and with modern image caching technology and cloud-based web mapping platforms we can share this web map to the world. So click the web map icon below and explore the history of Hartsifield-Jackson Atlanta International Airport as told through aerial photography and maps. The available map layers start with a 1936 airport development plan drawn up by the Works Progress Administration and carry through to our 2014 aerial basemap.

Historic Airport Viewer

Click to open the web map

The web map was built using ESRI’s Web App Builder technology and all data is hosted via the airport’s ArcGIS Online website. If you have any questions or comments please feel free to add them to the comments list below.


This post is about the history of the airport as told through aerial photography. For a more in-depth look at Atlanta’s extensive aviation history I invite you to visit David P. Henderson’s excellent Sunshine Skies website.

Sunshine Skies

Brian

6 thoughts on “Mapping The History Of The ATL

  1. Very cool stuff. It looks like nothing is left from the 40s or 50s–the airport has just grown so much.

    How do benchmarks fit into your work? I am an avid benchmark hunter and have searched for them on a few small airports, but never on a large airport (and doubt I will ever be allowed to!)
    It looks like there are, or were, at least 15 on property. Many have been documented as Not Found over the years, such as the 3 where the old terminal buildings and hangers used to be at the north side of the airport. Others are in places that would be a bit nerve wracking to access, such as the ones at the west ends of all the runways.

    • Matt, the survey control on the airport is absolutely essential to our work, and one of my tasks is to manage that control and have new control set if and when old control is disturbed or removed. You are correct, much of the control stations are set in places that are virtually inaccessible, but they fit a specific need established by the FAA. One of the interesting things about the NGS survey control database is that it’s like the Hotel California, you can submit a control station for inclusion in the national database but once it’s in there it is virtually impossible to remove, even if the control has been destroyed decades ago. This has actually helped us solve some historical issues. For example, several years back Delta was interested in marking the location of the original terminal control tower (which sat where they now have a parking lot). Since I was able to find the NGS data sheet for the control station that used to be the rotating beacon on top of the old tower it was an easy task to convert that coordinate value to State Plane, program it into our survey equipment and have it guide us to within just a foot or two of where that original tower used to sit. Thanks for your interest!

      – Brian

      • I’ve found a few beacons–they are usually intersection stations, although a few have had marks set near them. Most are long gone and there is little evidence of them. The ones I have found were either on airport property and preserved for history or were on hilltops and repurposed as cell towers. I have yet to find one with a concrete arrow under it, pointing the direction in daytime.

        I see some of your marks are quite new, so you obviously have been resetting the control. As for “destroying” stations, the NGS insists on proof–the disk usually, to show that you just weren’t looking in the wrong place. The database record is still there but you can bypass it when searching. I have gotten about 25 listed as destroyed, including 2 where I didn’t have the disk in hand but was familiar enough with the locality through history that I could convince the person who does the entering (Deb) that they were gone.

        Even better, I once was able to get a disk added back into the database by adding the description (http://www.ngs.noaa.gov/cgi-bin/ds_mark.prl?PidBox=kw2650).

        Getting permission to access marks on airport property is quite difficult and I haven’t even approached HIA to do so (their marks aren’t nearly as close to the runway as yours, but getting to them would require crossing the runway, or going around it. I feel totally capable of walking across their runway, but I doubt they would agree with me.) I have found marks at private airports, where simply telling whoever is hanging around in the office what I plan on doing usually results in them saying “sure, whatever”, and off I go.

  2. Very cool story! Awesome to learn a piece of history that most people probably don’t know. Would be a great story to share with the local news stations 😉

  3. That is amazing work ! WOW !! When I first came to work at Delta in 1966, the old airport terminal building from the 1940’s was still standing. A lot of the 40’s hangers, road ways and misc. buildings were still in use. I remember there was an old wooden telephone booth in front of the Delta ground equipment workshop that had the pointed roof and chickenwire glass. I tried to find how I could acquire that booth but never did and it finally disappeared.
    Thanks Brian, I’d love to see this in a video presentation.
